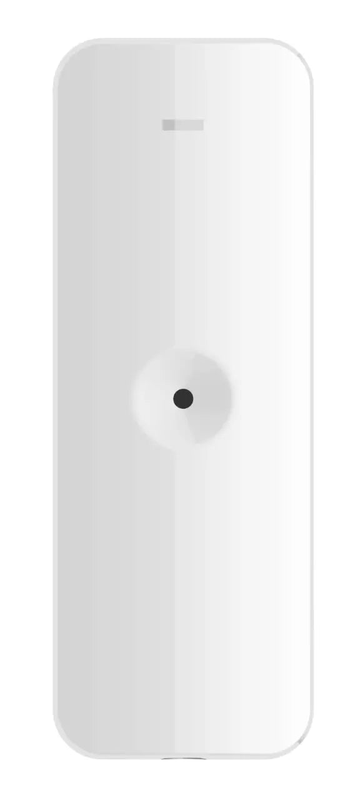

Wireless Glass Break Detector DS-PDBG8-EG2-WB

• High quality Omni-directional microphone sensor
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

• Detection MethodAcoustic Sensor
• Detection Range8m
• Detection Angle120°
• Sensitivity2m;4m;6m;8m
• Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
• Glass Thickness2.4mm to 6.4mm
• Glass Size0.3m x 0.3m to 3m x 3m

• Digital ProcessingSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

• Alarm InputNormally Closed;Normally Open;Impulse Count
• Power SwitchPower Up Enrolling
• LED IndicatorBlue(Alarm)

• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency433MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

• Power SupplyBattery Powered
• Battery TypeCR123A × 2
• Typical Voltage3V
• Standard Battery LifeUp to 5 years (standby time)

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)38.8mm × 107.0mm × 24.5mm
• Weight83g
• Mounting MethodWall;Ceiling
• Application ScenarioIndoor
