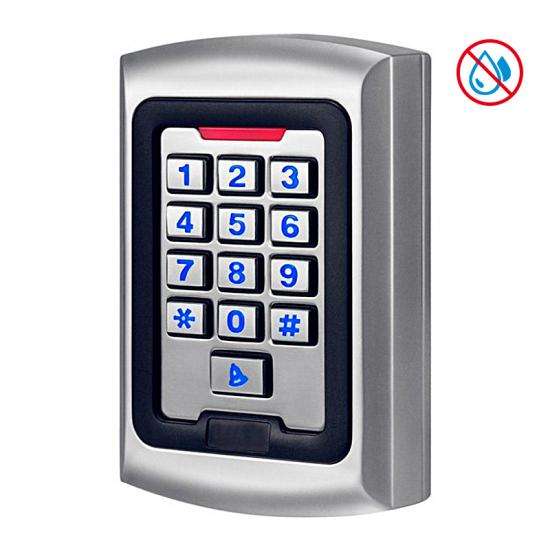

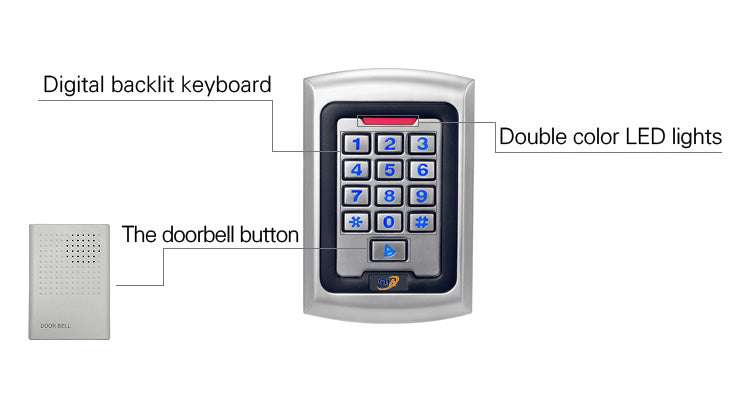

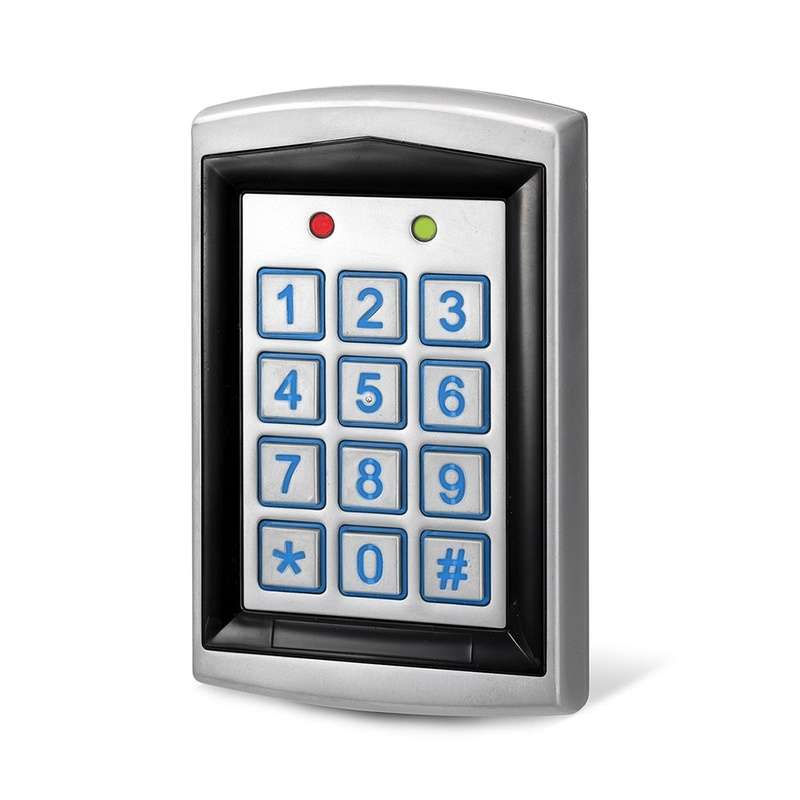

Anti-Vandal One-Door Access Control With Backlit Keyboard
|
Card type |
EM or MF |
|
Waterproof degree |
Non-Waterproof(S500) / IP68(S500-W) |
|
User capacity |
2000 card user card, 2000 user password |
|
Environment Humidity |
10%～90% |
|
Lock output |
≤3A |
|
Working voltage |
DC12V±10％ |
|
Static electricity |
≤30mA |
|
Alarm output |
≤20A |
|
Output short circuit protection time |
≤100μS |
|
Card read distance |
5～8cm |
|
Ambient temperature |
-45℃～60℃ |
|
Door Opening Time |
0～99s(Adjustable) |
|
Dimension |
120*80*25mm |
