DC 12V-24V Access Control System Aluminum Alloy Safe Electric Drop Bolt Door Lock BL-3000

> Voltage: DC12V-24V

> Start Current: 580mA

> Standby Current: 200mA

> Power on to lock

> Lock body: 150X34X27mm

> Weight: 0.6KG

What is an electric bolt lock?

The electric bolt lock is an electronically controlled lock, which drives the extension or retraction of the "bolt" through the on and off of the current to achieve the function of locking or opening the door. Of course, the realization of the function of closing the door and opening the door needs to cooperate with the "magnet".

BL-3000 Electric hanging bolt lock-Power on to lock, with 4wires and time delay, 0.3.6seconds

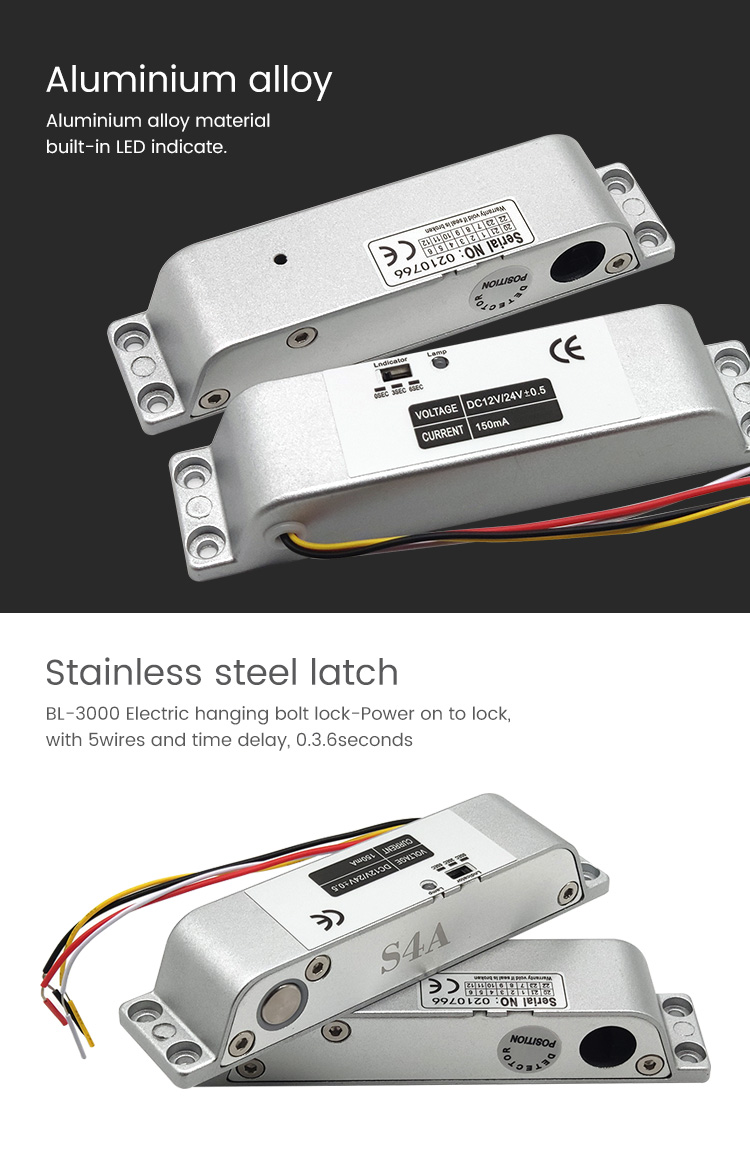

Aluminum alloy material built-in LED indicate.

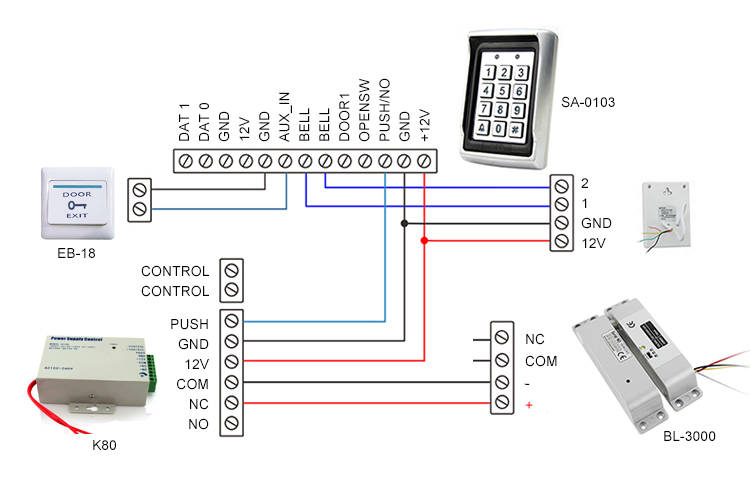

Diagram
