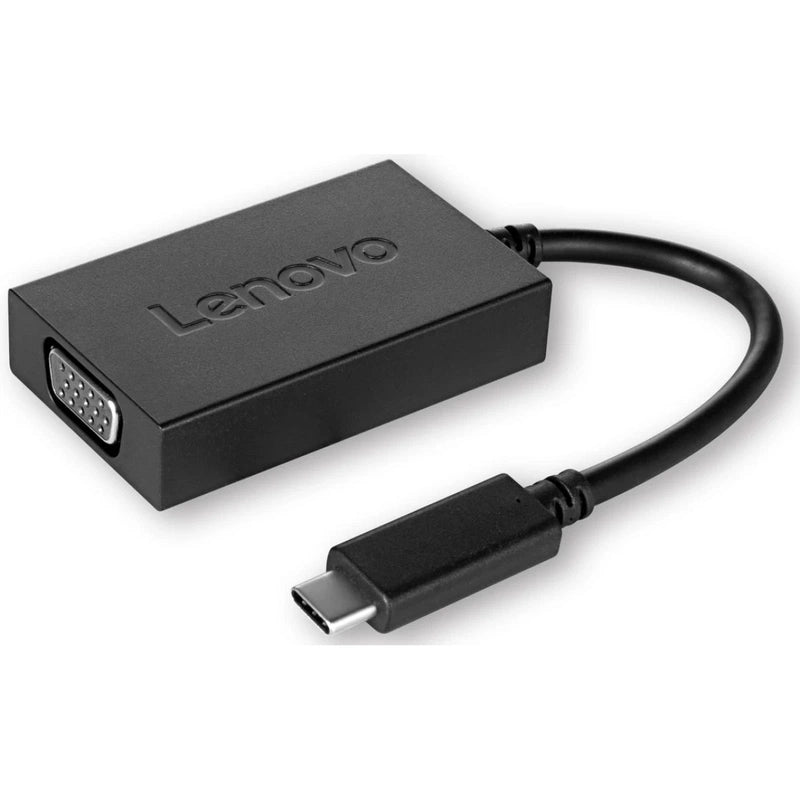

Lenovo 4X90M42956 USB Type-C to VGA Plug and Play Converter Cable Adaptor - Black
The Lenovo USB-C to VGA Adapter turns an available USB-C port into a VGA display adapter for connecting to any display, projector or TV with VGA input. The Lenovo USB-C to VGA Adapter can be used to mirror your primary display or to extend your display and to double workspace requiring no extra drivers to be installed
Technical Information
Electrical Specifications:
The USB-C to VGA Adapter has a built-in DP to VGA converter by which 2 lanes DP signals are transferred to VGA signal.
- Max power consumption: 5V +/- 5%, 1.5A
- Over voltage protection: 5.8V
- Have a VGA video output, the display supports extend, mirror mode.
- The Maximum bandwidth supported by VGA port up to 5.4G bit/s
Wide set of display resolutions is supported:
- WUXGA: 1920*1200, 60 Hz, 18 bpp, 193 MHz pixel clock rate
- WUXGA: 1920*1200, 60 Hz (reduced blanking), 24 bpp, 154 MHz pixel clock rate
- UXGA: 1600*1200, 60 Hz, 162 MHz pixel clock rate
- SXGA: 1280*1024, 60 Hz, 108 MHz pixel clock rate
- XGA: 1024*768, 60 Hz, 65 MHz pixel clock rate
- SVGA: 800*600, 60 Hz, 40 MHz pixel clock rate
- VGA: 640*480, 60 Hz, 25 MHz pixel clock rate
Detail resolutions supporting depends on each monitor’s EDID information.
- EDID management follows VESA spec.
- Hot plug: support HPD
- VGA fully meet VESA 1.1
Physical Specifications:
Use both metric systems
- Net Dimensions & Weight: 222*27*12mm & 44g
- Include length of the cable (keyboards, audio etc.): 222+/-10mm
- Gross Dimensions & Weight: 148*104*24mm & 144g
